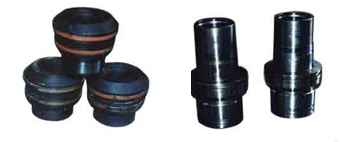

Tubing spool and Tubing hanger is classified as two things: one is vertical seat                rubber sealing, the other is cone-shaped seat metal sealing. Users can select                one of them upon their requirement。



Main Technical Parameters for tubing spool

Performance Requirement Level	PR1-2
Product Specification Level PSL1-4	-
Temperature	P·U(-29C～121C)
Material Class	AA～FF

Main Technical Parameters for tubing spool

Top flange	Bottom Flange	Top flange	Bottom flange
71/16″×2000psi (179.4mm×14MPa)	9″×2000psi (228.6mm×14MPa)	71/16″×10000psi (179.4mm×70MPa)	11″×10000psi (279.4mm×70MPa)
71/16″×2000psi (179.4mm×14MPa)	11″×2000psi (279.4mm×14MPa)	71/16″×15000psi (179.4mm×105MPa)	11″×10000psi (279.4mm×105MPa)
71/16″×3000psi (179.4mm×21MPa)	9″×2000psi (228.6mm×14MPa)	11″×5000psi (179.4mm×35MPa)	11″×10000psi (279.4mm×70MPa)
71/16″×3000psi (179.4mm×21MPa)	11″×3000psi (279.4mm×21MPa)	11″×10000psi (179.4mm×70MPa)	135/8″×5000psi (346.1mm×35MPa)
71/16″×5000psi (179.4mm×25MPa)	11″×5000psi (279.4mm×35MPa)	11″×10000psi (179.4mm×70MPa)	11″×10000psi (279.4mm×70MPa)
71/16″×10000psi (179.4mm×70MPa)	11″×5000psi (279.4mm×35MPa)	11″×15000psi (179.4mm×105MPa)	11″×2000psi (279.4mm×70MPa)
