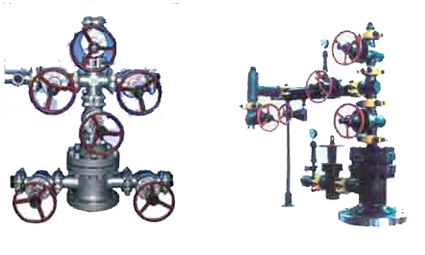

KZ Series Injection Wellhead Assembly, which including X-trees and tubing heads,              is the necessaries of water injection projects in the onshore oil field. It is available              for the Conventional & Inverse water injection, Conventional & Inverse Well flushing              and Water Injection Downhole Testing.

                                                Technical Parameters for KZ Series Injection Wellhead Assembly

Name		KZ Series Injection Wellhead Assembly	-
Type		KZ65/35	KZ80-65/35
Rated Pressure		5000Psi(35MPa)	5000Psi(35MPa)
Nominal Size	Main Passage Diameter	2 9/16in.(65mm)	3 1/8in.(80mm)
	Side Passage Diameter	2 9/16in.(65mm)	2 9/16in.(65mm)
Working Temperature		PU(-29～121C)	PU(-29～121C)
Available Medium		Water	Water
Material Class		AA～FF	AA～FF
Product Specification Grade		PSL1-2	PSL1-2
Performance Requirement Grade		PR1-2	PR1-2
Connection Type		Clamp, union, welding, connection	-
