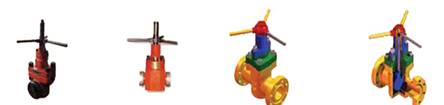

The series include nonmetal sealing and metal sealing. They can be applied in
                                      the drilling and circulating pipeline to control mud flowing. The end connections
                                      are trapeziform thread plus ball sealing with easy access to installation and high
                                      reliable service ability. They can be applied in various working conditions.

Main Technical Parameters for Mud Manifold

Type	Z23X-35-DN50	Z23X-35-DN65	Z23X-35-DN80	Z23X-35-DN100
Rated Pressure	5000(35)
Nominal Size	Φ50(2″)	Φ63(2-1/2″)	Φ76(3″)	Φ94(4″)
Temperature Class	P U
Available Medium	Oil, water, and mud
Connection Type	union
Connector Size	Tr120×6	Tr130×6	Tr150×6	Tr180×6
Length	205	235	270	330
Product Specification Level	PSL1～3
Material Class	AA～FF
Performance Requirement Level	PR1
